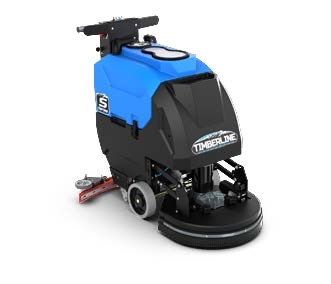

20″ Timberline Walk Behind Battery Auto Scrubber / S20 Disk / Pad Assist

20″ Timberline Walk Behind Battery Auto Scrubber – S20 Disk – Pad Assist – includes: Disk: Pad Driver – Single Brush 0.75 HP – 180 RPM / Charger, Console, Dual Mode WET 8A / 95AH WET (2X) Battery Pack – Crown – 24V System / All Steel 3/16″ – 4.7mm – 7 ga Powder Coated Frame Supports Weight of Machine / 12 Gal – 45 L Poly Solution Tank & 15 Gal – 57 L Poly Recovery Tank / Curved Squeegee with Tooless Blade Adjustments – 250 lb Capacity Scrubdeck Actuator / Hand Guards

TB-TS20PA

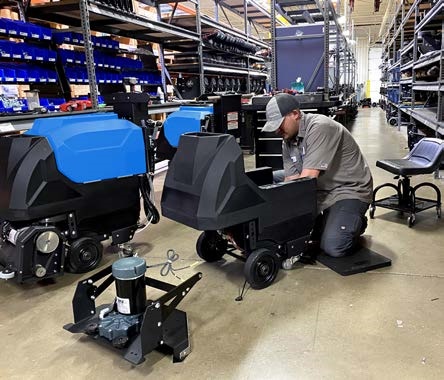

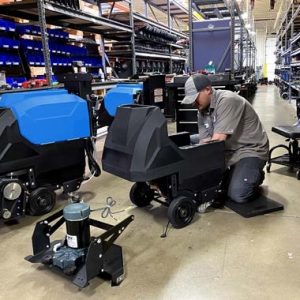

Assembled by Hand:

Our American workforce hand-builds each machine with components sourced over 95% from American suppliers. We routinely pay more for these domestically supplied components required to build a superior product. All design, prototyping, production and testing is done in-house where we can best control quality.

Steel Fabrication:

We produce heavy duty equipment and require a good amount of thick steel in the construction. We use a combination of Stainless 304 (Austenitic 18/8) and mild steel with e-coating + powder paint for corrosion resistance. Steel fabrication is done in-house or from local suppliers with specialty equipment.

Rotational Molding:

Complex shapes that allow for our tank designs are best achieved with in-house equipment. We own multiple dual station rotational molding machines that allow us to produce finished parts from raw plastic. Producing consistently higher quality parts, and respond quickly to sales spikes.

Product Design:

Our team has designed and engineered over 100 unique machines. Each new generation of machines evolve from prior designs to retain the strengths and correct any weakness. From the first pencil sketch we focus on durability, serviceability, performance, productivity, specifications, and value.

Clean in hard to reach areas with this small-footprint walk behind floor scrubber. Especially agile and quiet for congested areas

• Up to 40,000 sqft Per Charge
• 12 / 15 Gallons
• 17 – 20 inch decks

• Brush / Pad Selection
• Lowest Maintenance Cost
• Improved Cleaning on Irregular Floors
• Brushes Individually Driven for Unmatched Performance

Disk Scrub Path: 20 in.

Dimensions: 49.5 × 22.5 × 38 in*
Solution Tank: 12 Gal

Recovery Tank: 15 Gal

Demisting Chamber: 1 Gal

Run Time: Up to 2 Hours

Theoretical Coverage: 20,000 sqft/hr

Practical Coverage: 9,500 sqft/hr

Like a heavy duty truck, the strong steel frame supports all of the systems and weight. The 4-point stance offers greater stability on irregular floors and those contact points bolt directly to the steel frame.

Steel Frame Attachments: Scrub Deck, Battery Support, Wheels/Transaxle, Squeegee Linkage, Tanks

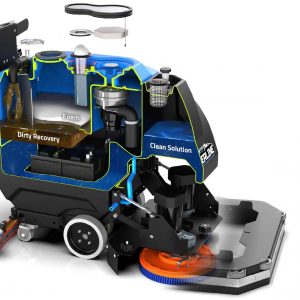

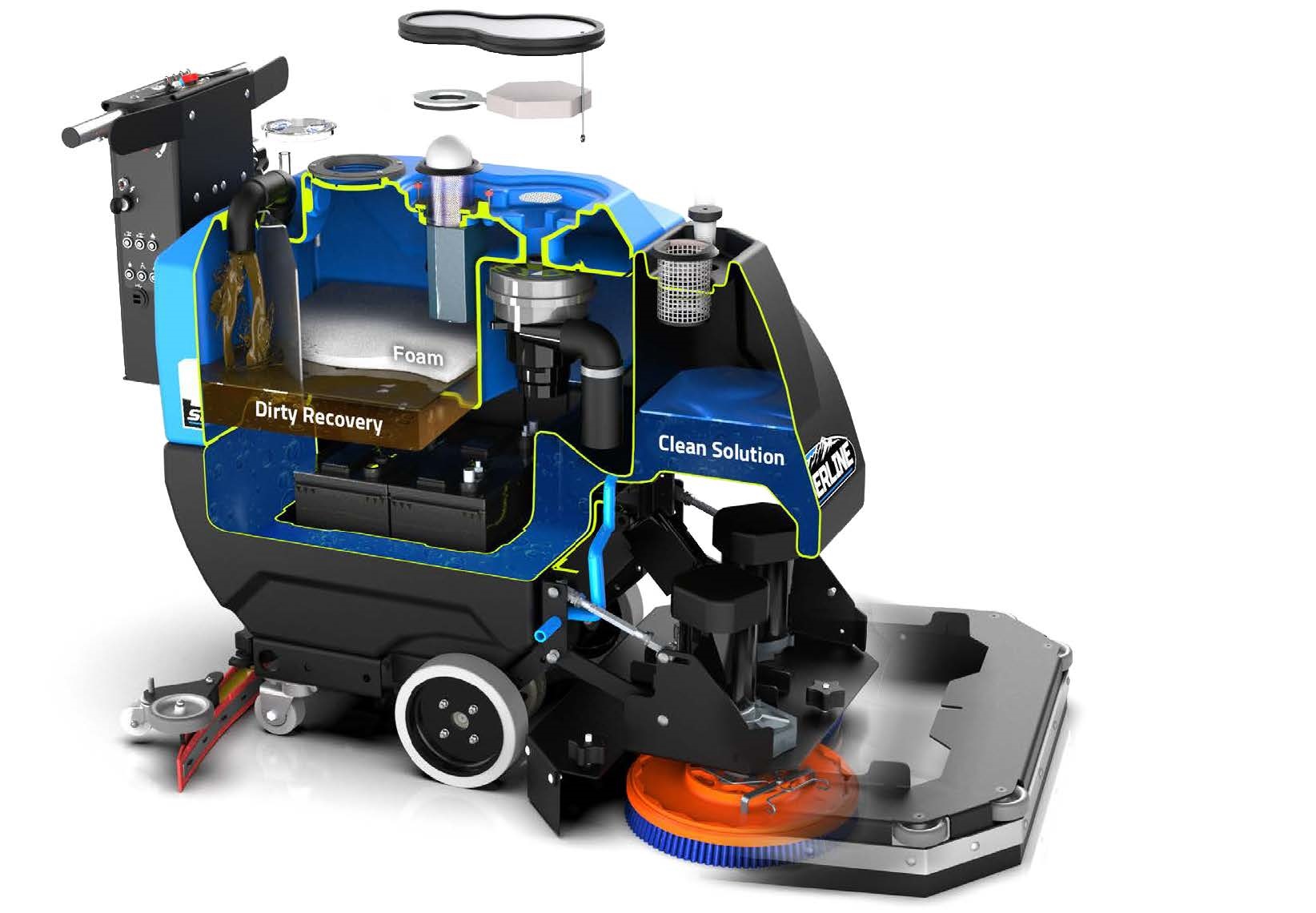

To protect the vacuum motor from intaking moisture, our equipment has five (5) individual protective barriers: Intake Curtain, Shield, Stainless Vac Screen-Ball Float, White Mesh Filter, Stainless Screen

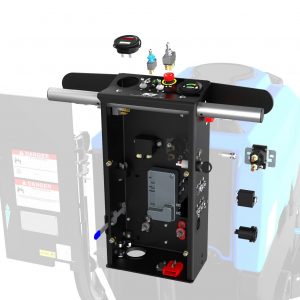

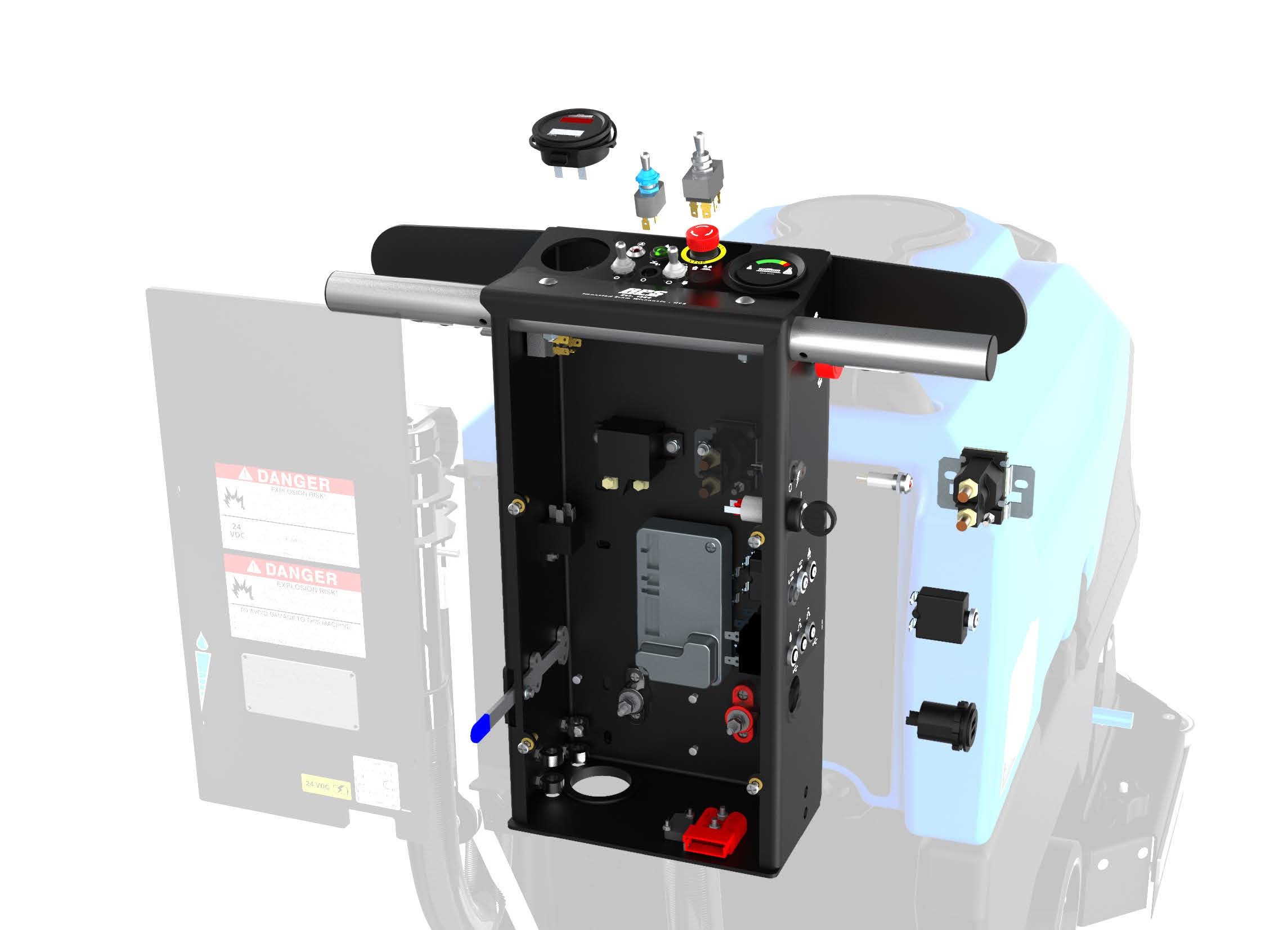

Our central command components are simply designed making service easier than ever. We build our boxes out of steel, maintaining the integrity of the components and the machine.

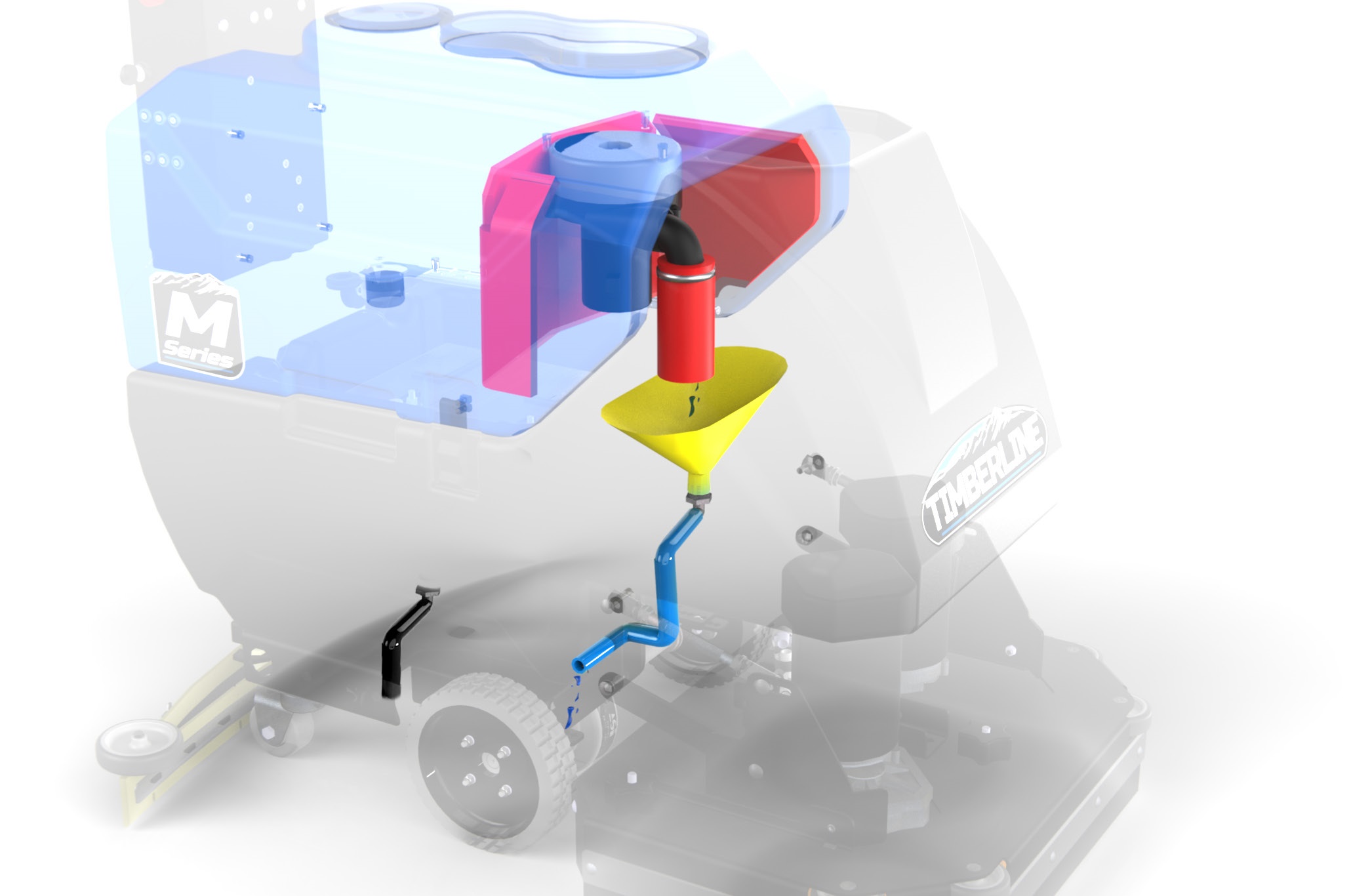

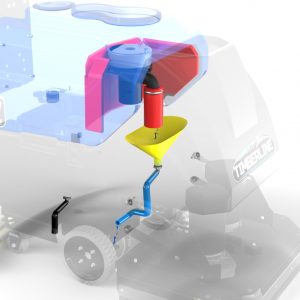

Patent pending design. If water or foam manages to get past the five protective barriers, our equipment directs the discharge out a hose to alert the operator and further guard the machine from damage.

Vac Motor Blow-By: Sound Absorbing Foam, Vac Exhaust Muffler, Molded In-Tank Funnel, Blow-By Discharge Hose, Battery Box Drain Hose with valve
